Soft Jawssuit CNC Power Chucks
For over 45 years, Dimac has supplied Australian manufacturers with high-quality soft jaws for CNC lathes and turning centres.
Dimac soft jaws are manufactured from 1045 carbon steel for excellent machinability, secure clamping performance and reliable concentricity. Aluminium and custom soft jaw options are also available to suit special applications.
Designed to suit leading power chuck brands including Kitagawa, they deliver dependable performance, faster setup times and long service life in demanding machining environments.
How do I select the correct soft jaw model?
Filter product list
Login
to access pricing and online ordering.
No account?
Request one hereThank you! Your submission has been received!
Oops! Something went wrong while submitting the form.

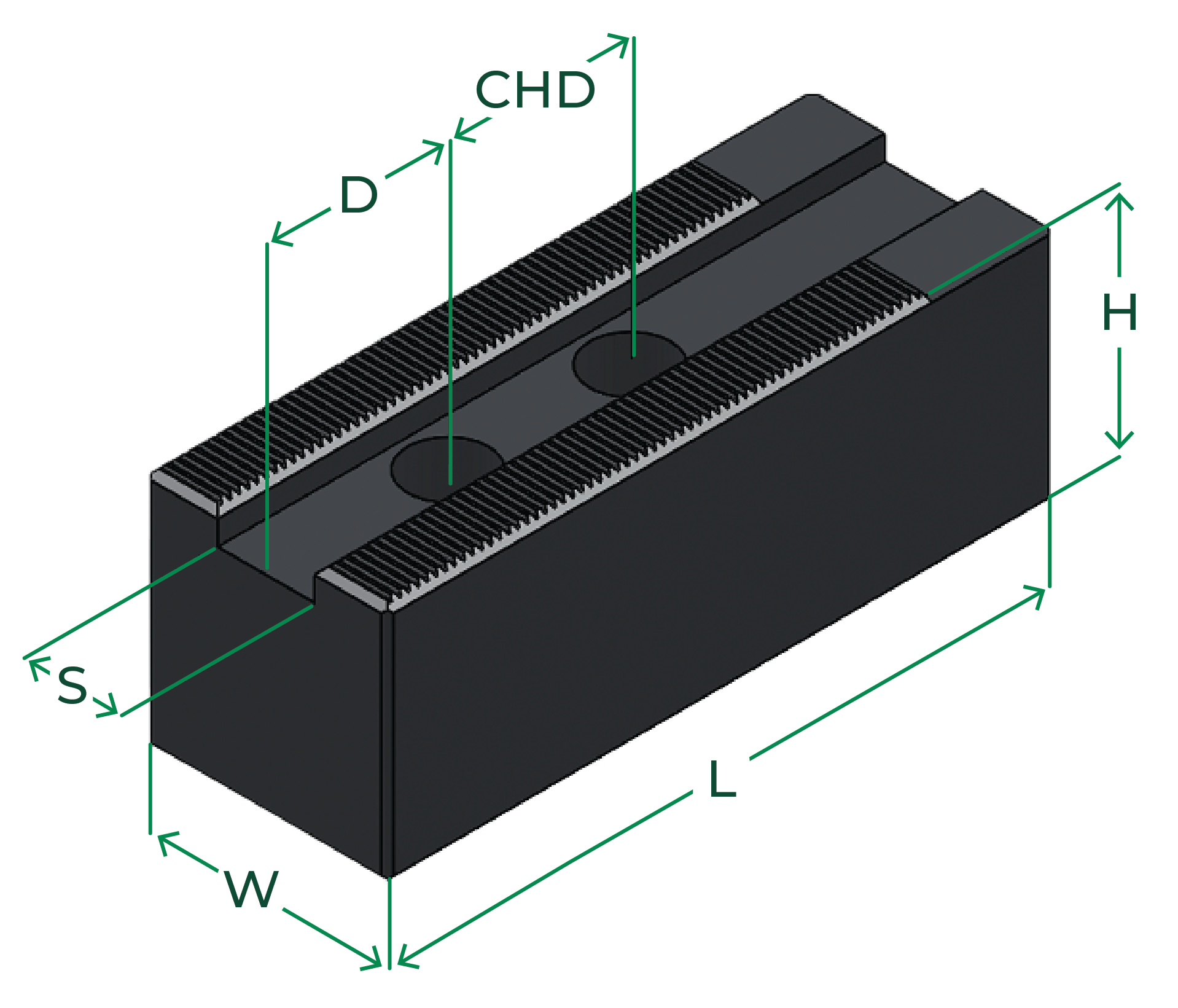

Product/Part no.
Chuck Size
Suits
Dimensions
Serration
Slot
CHD
Product/Part no.
Soft Jaw Set 8215
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L100 W40 H60 D35
Serration
1.5x60º
Slot
16
CHD
30
A$120.00
Low stock
Soft Jaw Set 8195
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L100 W50 H150 D30
Serration
1.5x60º
Slot
16
CHD
30
A$371.00
Low stock
Soft Jaw Set 8133
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L100 W50 H90 D25
Serration
1.5x60º
Slot
16
CHD
30
A$186.00
In stock
Soft Jaw Set 8625
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L100 W75 H150 D20
Serration
1.5x60º
Slot
21
CHD
30
Request quote
Soft Jaw Set 8627
set/3
Made to order
Chuck Size
Power Chuck 15"
Power Chuck 18"
Suits
Kitagawa
B-15
B-18
Dimensions
L100 W75 H150 D20
Serration
1.5x60º
Slot
22
CHD
43
Request quote
Soft Jaw Set 8363
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
PW12
Dimensions
L109 W70 H70 D19
Serration
Slot
57.1
CHD
44.45
A$210.00
Low stock
Soft Jaw Set 8577
set/3
Made to order
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L110 W100 H50 D25
Serration
1.5x60º
Slot
16
CHD
30
A$281.00
Soft Jaw Set 8182
set/3
Chuck Size
Power Chuck 8"
Suits
Kitagawa
BR-08
B-208
BB-208
Dimensions
L110 W35 H40 D20
Serration
1.5x60º
Slot
14
CHD
25
A$91.00
In stock
Soft Jaw Set 8182-P
set/3
Chuck Size
Power Chuck 8"
Suits
Kitagawa
BR-08
B-208
BB-208
Dimensions
L110 W35 H40 D20 P20 A60
Serration
1.5x60º
Slot
14
CHD
25
A$136.00
Soft Jaw Set 8619-3H
set/3
Made to order
Chuck Size
Power Chuck 8"
Suits
Kitagawa
BR-08
B-208
BB-208
Dimensions
L110 W40 H40 D27.5
Serration
1.5x60º
Slot
14
CHD
25
Request quote
Soft Jaw Set 8032
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L110 W40 H40 D30
Serration
1.5x60º
Slot
16
CHD
30
A$77.00
In stock
Soft Jaw Set 8032 - 61
set/3
Made to order
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-211
Dimensions
L110 W40 H40 D30
Serration
1.5x60º
Slot
16
CHD
30
Request quote
Soft Jaw Set 8035
set/3
Made to order
Chuck Size
Power Chuck 10"
Suits
HOWA
HO1MA-10"
Dimensions
L110 W40 H40 D30
Serration
3x60º
Slot
16
CHD
30
Request quote
Soft Jaw Set 8035-P
set/3
Made to order
Chuck Size
Power Chuck 10"
Suits
HOWA
HO1MA-10"
Dimensions
L110 W40 H40 D30 P0 A120
Serration
3x60º
Slot
16
CHD
30
A$130.00
Low stock
Soft Jaw Set 8032-P
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L110 W40 H40 D30 P14 A120
Serration
1.5x60º
Slot
16
CHD
30
A$95.00
Soft Jaw Set 8233
set/3
Chuck Size
Power Chuck 8"
Suits
Kitagawa
BR-08
B-208
BB-208
Dimensions
L110 W40 H60 D20
Serration
1.5x60º
Slot
14
CHD
25
A$112.00
In stock
Soft Jaw Set 8201
set/3
Chuck Size
Power Chuck 8"
Suits
Kitagawa
BR-08
B-208
BB-208
Dimensions
L110 W40 H75 D20
Serration
1.5x60º
Slot
14
CHD
25
A$140.00
In stock
Soft Jaw Set 8176
set/3
Made to order
Chuck Size
Power Chuck 10"
Suits
MMK
H-10
He-10
HeX-10
Dimensions
L110 W40 H75 D21
Serration
1.5x60º
Slot
16
CHD
32
A$130.00
Low stock
Soft Jaw Set 8034
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L110 W40 H75 D30
Serration
1.5x60º
Slot
16
CHD
30
A$120.00
In stock
Soft Jaw Set 8034-61
set/3
Made to order
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L110 W40 H75 D30
Serration
1.5x60º
Slot
16
CHD
30
Request quote
Soft Jaw Set 8036
set/3
Made to order
Chuck Size
Power Chuck 10"
Suits
HOWA
HO1MA-10"
Dimensions
L110 W40 H75 D30
Serration
3x60º
Slot
16
CHD
30
Request quote
Soft Jaw Set 8419
set/3
Made to order
Chuck Size
Suits
Dimensions
L110 W45 H50 D23
Serration
1.5x60º
Slot
20
CHD
35
A$120.00
Low stock
Soft Jaw Set 8453
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L110 W50 H100 D20
Serration
1.5x60º
Slot
21
CHD
30
A$205.00
In stock
Soft Jaw Set 8048
set/3
Chuck Size
Power Chuck 315mm
Suits
SMW Autoblok
BH-D-250
BH-D-315
Dimensions
L110 W50 H50 D20
Serration
1/16x90º
Slot
21
CHD
30
A$118.00
In stock
Soft Jaw Set 8451
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L110 W50 H50 D20
Serration
1.5x60º
Slot
21
CHD
30
A$106.00
In stock
Soft Jaw Set 8697
set/3
Made to order
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L110 W50 H50 D25
Serration
1.5x60º
Slot
16
CHD
30
A$170.00
Low stock
Soft Jaw Set 8529
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L110 W50 H50 D40
Serration
1.5x60º
Slot
21
CHD
30
A$126.00
Low stock
Soft Jaw Set 8452
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L110 W50 H75 D20
Serration
1.5x60º
Slot
21
CHD
30
A$143.00
In stock
Soft Jaw Set 8639
set/3
Made to order
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L110 W60 H60 D30
Serration
1.5x60º
Slot
16
CHD
30
Request quote
Soft Jaw Set 8219-3H
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L120 W40 H40 D30 3 Hole
Serration
1.5x60º
Slot
16
CHD
30
A$108.00
In stock
Soft Jaw Set 8326
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L120 W40 H60 D25
Serration
1.5x60º
Slot
16
CHD
30
A$116.00
In stock
Soft Jaw Set 8446
set/3
Made to order
Chuck Size
Power Chuck 315mm
Suits
SMW Autoblok
BH-D-250
BH-D-315
Dimensions
L120 W50 H75 D45
Serration
1/16x90º
Slot
21
CHD
30
Request quote
Soft Jaw Set 8747
set/3
Made to order
Chuck Size
Power Chuck 260mm
Suits
SMW Autoblok
HFKN-D-260
Dimensions
L120 W70 H115 D30
Serration
1/16x90º
Slot
21
CHD
28
Request quote
Soft Jaw Set 8748
set/3
Made to order
Chuck Size
Power Chuck 260mm
Suits
SMW Autoblok
HFKN-D-260
Dimensions
L120 W70 H80 D30
Serration
1/16x90º
Slot
21
CHD
28
A$894.00
Soft Jaw Set 8357
set/2
Made to order
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BRT-10
BT-210
BLT-210
NLT10
BBT-210
Dimensions
L120 W75 H75 D30
Serration
1.5x60º
Slot
16
CHD
30
Request quote
Soft Jaw Set 8080
set/3
Made to order
Chuck Size
Power Chuck 315mm
Suits
SMW Autoblok
BH-D-250
BH-D-315
Dimensions
L125 W50 H100 D22
Serration
1/16x90º
Slot
21
CHD
30
A$681.00
Low stock
Soft Jaw Set 8049
set/3
Chuck Size
Power Chuck 315mm
Suits
SMW Autoblok
BH-D-250
BH-D-315
Dimensions
L125 W50 H50 D22
Serration
1/16x90º
Slot
21
CHD
30
A$138.00
Low stock
Soft Jaw Set 8430
set/3
Made to order
Chuck Size
Power Chuck 260mm
Suits
SMW Autoblok
HFKN-D-260
Dimensions
L125 W50 H50 D22
Serration
1/16x90º
Slot
21
CHD
28
Request quote
Soft Jaw Set 8059
set/3
Made to order
Chuck Size
Power Chuck 315mm
Suits
SMW Autoblok
BH-D-250
BH-D-315
Dimensions
L125 W50 H75 D22
Serration
1/16x90º
Slot
21
CHD
30
Request quote
Soft Jaw Set 8431
set/3
Made to order
Chuck Size
Power Chuck 260mm
Suits
SMW Autoblok
HFKN-D-260
Dimensions
L125 W50 H75 D22
Serration
1/16x90º
Slot
21
CHD
28
A$140.00
Low stock
Soft Jaw Set 8128
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L130 W40 H40 D30
Serration
1.5x60º
Slot
16
CHD
30
A$92.00
In stock
Soft Jaw Set 8131
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L130 W40 H75 D30
Serration
1.5x60º
Slot
16
CHD
30
A$157.00
In stock
Soft Jaw Set 8300
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L130 W50 H100 D20
Serration
1.5x60º
Slot
21
CHD
30
A$215.00
In stock
Soft Jaw Set 8099
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
B-12
N-12
UVE315K
Dimensions
L130 W50 H100 D40
Serration
1.5x60º
Slot
18
CHD
30
Request quote
Soft Jaw Set 8602
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L130 W50 H150 D20
Serration
1.5x60º
Slot
21
CHD
30
Request quote
Soft Jaw Set 8588
set/3
Made to order
Chuck Size
Power Chuck 315mm
Suits
SMW Autoblok
BH-D-250
BH-D-315
Dimensions
L130 W50 H150 D22
Serration
1/16x90º
Slot
21
CHD
30
Request quote
Soft Jaw Set 8298
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L130 W50 H50 D20
Serration
1.5x60º
Slot
21
CHD
30
A$112.00
In stock
Soft Jaw Set 8298-3H
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L130 W50 H50 D20
Serration
1.5x60º
Slot
21
CHD
30
Request quote
Soft Jaw Set 8732
set/3
Made to order
Chuck Size
Power Chuck 210mm
Suits
SMW Autoblok
HFKN-D-211
Dimensions
L130 W50 H50 D20
Serration
1/16x90º
Slot
17
CHD
22
Request quote
Soft Jaw Set 8022
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
HOWA
HO1MA-12"
Dimensions
L130 W50 H50 D39
Serration
3x60º
Slot
18
CHD
30
A$132.00
Low stock
Soft Jaw Set 8033
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
B-12
N-12
UVE315K
Dimensions
L130 W50 H50 D40
Serration
1.5x60º
Slot
18
CHD
30
A$120.00
In stock
Soft Jaw Set 8299
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L130 W50 H75 D20
Serration
1.5x60º
Slot
21
CHD
30
A$164.00
In stock
Soft Jaw Set 8098
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
B-12
N-12
UVE315K
Dimensions
L130 W50 H75 D40
Serration
1.5x60º
Slot
18
CHD
30
Request quote
Soft Jaw Set 8528
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L130 W50 H75 D40
Serration
1.5x60º
Slot
21
CHD
30
A$182.00
Low stock
Soft Jaw Set 8589
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L130 W50 H75 D50
Serration
1.5x60º
Slot
21
CHD
30
A$235.00
Low stock
Soft Jaw Set 8623
set/3
Made to order
Chuck Size
Power Chuck 15"
Power Chuck 18"
Suits
Kitagawa
B-15
B-18
Dimensions
L130 W60 H130 D37
Serration
1.5x60º
Slot
22
CHD
43
A$820.00
Soft Jaw Set 8370
set/3
Chuck Size
Power Chuck 15"
Power Chuck 18"
Suits
Kitagawa
B-215
N-15
N-18
Dimensions
L135 W50 H75 D27
Serration
1.5x60º
Slot
25.5
CHD
43
A$211.00
Low stock
Soft Jaw Set 8514
set/3
Made to order
Chuck Size
Power Chuck 400mm
Suits
SMW Autoblok
Centco4-400
Dimensions
L140 W60 H60 D25
Serration
1/16x90º
Slot
21
CHD
34
A$185.00
Low stock
Soft Jaw Set 8346
set/3
Made to order
Chuck Size
Suits
Dimensions
L140 W60 H60 D30
Serration
3/32x90º
Slot
25
CHD
40
A$189.00
Low stock
Soft Jaw Set 8763
set/3
Made to order
Chuck Size
Power Chuck 8"
Suits
Kitagawa
BR-08
B-208
BB-208
Dimensions
L150 W35 H40 D48
Serration
1.5x60º
Slot
14
CHD
25
A$133.00
Soft Jaw Set 8649
set/3
Made to order
Chuck Size
Power Chuck 8"
Suits
Kitagawa
BR-08
B-208
BB-208
Dimensions
L150 W40 H60 D20
Serration
1.5x60º
Slot
14
CHD
25
Request quote
Soft Jaw Set 8197
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L150 W40 H90 D30
Serration
1.5x60º
Slot
16
CHD
30
A$344.00
Low stock
Soft Jaw Set 8578
set/3
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L150 W50 H100 D30
Serration
1.5x60º
Slot
16
CHD
30
A$297.00
Low stock
Soft Jaw Set 8365
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L150 W50 H50 D20
Serration
1.5x60º
Slot
21
CHD
30
A$145.00
In stock
Soft Jaw Set 8365-61
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L150 W50 H50 D20
Serration
1.5x60º
Slot
21
CHD
30
A$261.00
Soft Jaw Set 8210
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
B-12
N-12
UVE315K
Dimensions
L150 W50 H50 D40
Serration
1.5x60º
Slot
18
CHD
30
A$170.00
Low stock
Soft Jaw Set 8526
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L150 W50 H50 D60
Serration
1.5x60º
Slot
21
CHD
30
A$151.00
Low stock
Soft Jaw Set 8068
set/3
Made to order
Chuck Size
Power Chuck 315mm
Suits
SMW Autoblok
BH-D-250
BH-D-316
Dimensions
L150 W50 H75 D22
Serration
1/16x90º
Slot
21
CHD
30
Request quote
Soft Jaw Set 8152
set/3
Made to order
Chuck Size
Power Chuck 21"
Power Chuck 500mm
Power Chuck 630mm
Suits
SMW Autoblok
Centco-21"
Centco4-500
Centco4-630
Dimensions
L150 W54 H70 D43
Serration
1/16x90º
Slot
25
CHD
41
A$415.00
Low stock
Soft Jaw Set 8274
set/3
Made to order
Chuck Size
Power Chuck 15"
Power Chuck 18"
Suits
MMK
H-15-18
He-15-18
HeX-15-18
Z-15-18
Dimensions
L150 W60 H100 D30
Serration
3x60º
Slot
22
CHD
50
Request quote
Soft Jaw Set 8541
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
B-12
N-12
UVE315K
Dimensions
L150 W60 H60 D20
Serration
1.5x60º
Slot
18
CHD
30
Request quote
Soft Jaw Set 8194
set/3
Made to order
Chuck Size
Power Chuck 15"
Power Chuck 18"
Suits
MMK
H-15-18
He-15-18
HeX-15-18
Z-15-18
Dimensions
L150 W60 H60 D30
Serration
3x60º
Slot
22
CHD
50
Request quote
Soft Jaw Set 8525
set/3
Made to order
Chuck Size
Power Chuck 24"
Suits
HOWA
HO1MA-24"
Dimensions
L150 W65 H70 D34
Serration
3x60º
Slot
26
CHD
50
Request quote
Soft Jaw Set 8764
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L150 W70 H70 D40
Serration
1.5x60º
Slot
21
CHD
30
A$363.00
Soft Jaw Set 8372
set/3
Made to order
Chuck Size
Power Chuck 500mm
Power Chuck 800mm
Suits
SMW Autoblok
BHD-FC-500
BHD-FC-800
Dimensions
L150 W75 H115 D37
Serration
3/32x90º
Slot
25.5
CHD
38
A$1,155.00
Soft Jaw Set 8372-3H
set/3
Made to order
Chuck Size
Power Chuck 500mm
Power Chuck 800mm
Suits
SMW Autoblok
BHD-FC-500
BHD-FC-800
Dimensions
L150 W75 H115 D37
Serration
3/32x90º
Slot
25.5
CHD
38
A$1,155.00
Low stock
Soft Jaw Set 8332
set/3
Made to order
Chuck Size
Power Chuck 315mm
Suits
SMW Autoblok
BH-D-250
BH-D-315
Dimensions
L155 W60 H60 D25
Serration
1/16x90º
Slot
21
CHD
30
A$190.00
Low stock
Soft Jaw Set 8369
set/3
Made to order
Chuck Size
Power Chuck 500mm
Power Chuck 800mm
Suits
SMW Autoblok
BHD-FC-500
BHD-FC-800
Dimensions
L160 W60 H60 D27
Serration
3/32x90º
Slot
25.5
CHD
38
Request quote
Soft Jaw Set 8539
set/3
Made to order
Chuck Size
Power Chuck 400mm
Suits
Kitagawa
UVE-400K
Dimensions
L160 W60 H60 D35
Serration
3x60º
Slot
22
CHD
60
A$413.00
Low stock
Soft Jaw Set 8634
set/3
Made to order
Chuck Size
Power Chuck 500mm
Suits
SMW Autoblok
GHD-500
Dimensions
L165 W60 H100 D25
Serration
3/32x90º
Slot
28
CHD
34
A$384.00
Low stock
Soft Jaw Set 8323
set/3
Chuck Size
Power Chuck 15"
Power Chuck 18"
Suits
Kitagawa
B-15
B-18
Dimensions
L165 W60 H100 D37
Serration
1.5x60º
Slot
22
CHD
43
A$328.00
In stock
Soft Jaw Set 8537
set/3
Chuck Size
Power Chuck 15"
Power Chuck 18"
Suits
Kitagawa
B-215
N-15
N-18
Dimensions
L165 W60 H100 D37
Serration
1.5x60º
Slot
25.5
CHD
43
A$340.00
In stock
Soft Jaw Set 8760
set/3
Made to order
Chuck Size
Power Chuck 15"
Power Chuck 18"
Suits
Kitagawa
B-15
B-18
Dimensions
L165 W60 H160 D37
Serration
1.5x60º
Slot
22
CHD
43
A$1,097.00
Soft Jaw Set 8146
set/3
Chuck Size
Power Chuck 15"
Power Chuck 18"
Suits
Kitagawa
B-15
B-18
Dimensions
L165 W60 H60 D37
Serration
1.5x60º
Slot
22
CHD
43
A$180.00
In stock
Soft Jaw Set 8297
set/3
Chuck Size
Power Chuck 15"
Power Chuck 18"
Suits
Kitagawa
B-215
N-15
N-18
Dimensions
L165 W60 H60 D37
Serration
1.5x60º
Slot
25.5
CHD
43
A$215.00
Low stock
Soft Jaw Set 8661
set/3
Made to order
Chuck Size
Power Chuck 15"
Power Chuck 18"
Suits
Kitagawa
B-15
B-18
Dimensions
L165 W60 H80 D37
Serration
1.5x60º
Slot
22
CHD
43
Request quote
Soft Jaw Set 8632
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L170 W100 H60 D20
Serration
1.5x60º
Slot
21
CHD
30
A$560.00
Soft Jaw Set 8107
set/3
Made to order
Chuck Size
Power Chuck 315mm
Suits
SMW Autoblok
BH-D-250
BH-D-315
Dimensions
L170 W50 H50 D22
Serration
1/16x90º
Slot
21
CHD
30
A$144.00
Low stock
Soft Jaw Set 8659
set/3
Made to order
Chuck Size
Power Chuck 10"
Suits
Kitagawa
BR-10
B-210
BB-210
Dimensions
L170 W50 H50 D30
Serration
1.5x60º
Slot
16
CHD
30
Request quote
Soft Jaw Set 8340
set/3
Chuck Size
Power Chuck 12"
Suits
Kitagawa
BR-12
B-212
BB-212
Dimensions
L170 W50 H75 D20
Serration
1.5x60º
Slot
21
CHD
30
A$224.00
Low stock
Soft Jaw Set 8422
set/3
Made to order
Chuck Size
Power Chuck 12"
Suits
Kitagawa
B-12
N-12
UVE315K
Dimensions
L170 W50 H75 D40
Serration
1.5x60º
Slot
18
CHD
30
A$641.00
Soft Jaw Set 8338
set/3
Made to order
Chuck Size
Power Chuck 500mm
Suits
SMW Autoblok
GHD-500
Dimensions
L170 W60 H100 D27
Serration
3/32x90º
Slot
28
CHD
34
A$291.50
Low stock
Soft Jaw Set 8540
set/3
Made to order
Chuck Size
Power Chuck 400mm
Suits
Kitagawa
UVE-400K
Dimensions
L170 W60 H100 D35
Serration
3x60º
Slot
22
CHD
60
A$485.00
Low stock
Soft Jaw Set 8360
set/3
Chuck Size
Power Chuck 21"
Power Chuck 24"
Power Chuck 500mm
Power Chuck 630mm
Suits
Kitagawa
B-21
N-21
B-24
N-24
UVE-500-630
Dimensions
L180 W60 H120 D40
Serration
3x60º
Slot
25
CHD
60
A$647.00
Low stock
Soft Jaw Set 8605
set/3
Made to order
Chuck Size
Power Chuck 450mm
Suits
Kitagawa
UB-450
Dimensions
L180 W60 H60 D37
Serration
3x60º
Slot
25.5
CHD
43
Request quote
Soft Jaw Set 8384-3H
set/3
Made to order
Chuck Size
Power Chuck 500mm
Power Chuck 800mm
Suits
SMW Autoblok
BHD-FC-500
BHD-FC-800
Dimensions
L180 W60 H90 D28
Serration
3/32x90º
Slot
25.5
CHD
38
Request quote
Soft Jaw Set 8770
set/3
Made to order
Chuck Size
Power Chuck 24"
Suits
HOWA
HO1MA-24"
Dimensions
L180 W65 H120 D40
Serration
3x60º
Slot
26
CHD
50
A$789.00
Soft Jaw Set 8601
set/3
Chuck Size
Power Chuck 21"
Power Chuck 24"
Power Chuck 500mm
Power Chuck 630mm
Suits
Kitagawa
B-21
N-21
B-24
UVE-500-630
Dimensions
L180 W65 H70 D40
Serration
3x60º
Slot
25
CHD
60
A$498.00
In stock
Soft Jaw Set 8630
set/3
Made to order
Chuck Size
Power Chuck 24"
Suits
HOWA
HO1MA-24"
Dimensions
L185 W65 H70 D34
Serration
3x60º
Slot
26
CHD
50
A$855.00
Low stock
Soft Jaw Set 8630-3H
set/3
Made to order
Chuck Size
Power Chuck 24"
Suits
HOWA
HO1MA-24"
Dimensions
L185 W65 H70 D34
Serration
3x60º
Slot
26
CHD
50
A$855.00
No results found.
There are no results with this criteria. Try clearing your search/filters and use another combination.
Soft JawsFAQs
We’ve answered some of the most common questions.
If your question is not covered, please get in touch.
Which chuck brands does Dimac support?
Dimac supports Kitagawa, Bison, TDG, SMW Autoblock and MMK. Other chuck brands such as Samchully are compatible with Kitagawa patterns
What serrations are available?
Dimac soft jaws are available in four serration types:
- Metric 1.5 mm × 60°
- Metric 3.0 mm × 60°
- Imperial 1/16″ × 90°
- Imperial 3/32″ × 90°
The serration must match correctly to maintain clamping force and concentricity.
How do I select the correct soft jaw model?
Soft jaws must match the chuck’s serration type, slot width and centre hole distance (CHD). If you are unsure which model is required, provide the chuck make and model so Dimac can confirm compatibility and recommend the most suitable soft jaws for your application.
What material should I choose?
1045 carbon steel is the standard choice for general machining. 6061 aluminium is better suited to softer or finished parts where marking must be avoided.
Can Dimac modify standard soft jaws?
Yes. Dimac can modify standard soft jaws to suit specific applications, including pointing, rough boring, reduced size, additional mounting bores, weight reduction and flame hardening.
What if I cannot find the right soft jaw?
If a standard product is not suitable, Dimac can assist with a custom soft jaw solution, simply get in touch with our team.
