KitagawaT-Nutssuit CNC Power Chucks
Kitagawa T-Nuts provide a secure and accurate connection between soft or hard jaws and the power chuck master jaws, helping maintain correct jaw positioning, alignment and reliable clamping performance during machining.

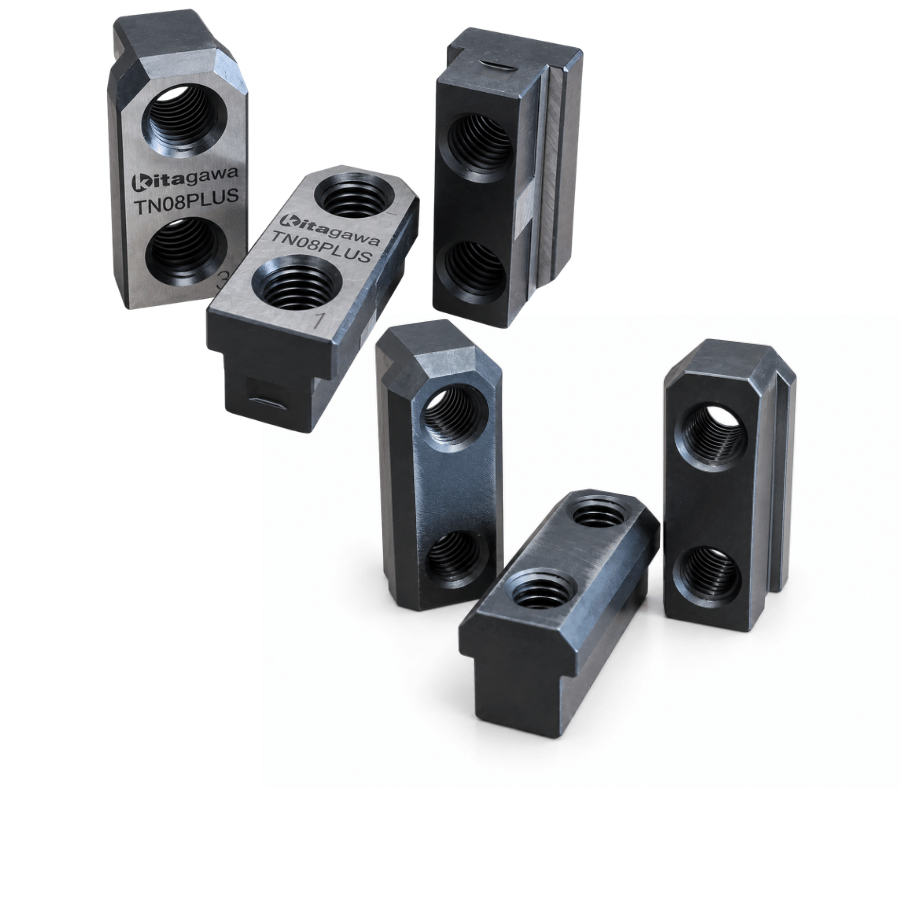

T-NutPLUS is Kitagawa’s high-accuracy T-nut option for compatible BR and BRT Series power chucks, designed to improve jaw mounting repeatability when formed jaws are removed and refitted. By maintaining jaw position repeatability of 0.01 mm T.I.R. or less on most compatible models, T-NutPLUS can eliminate the need to re-form jaws after a jaw change, helping reduce setup time while maintaining consistent gripping accuracy.

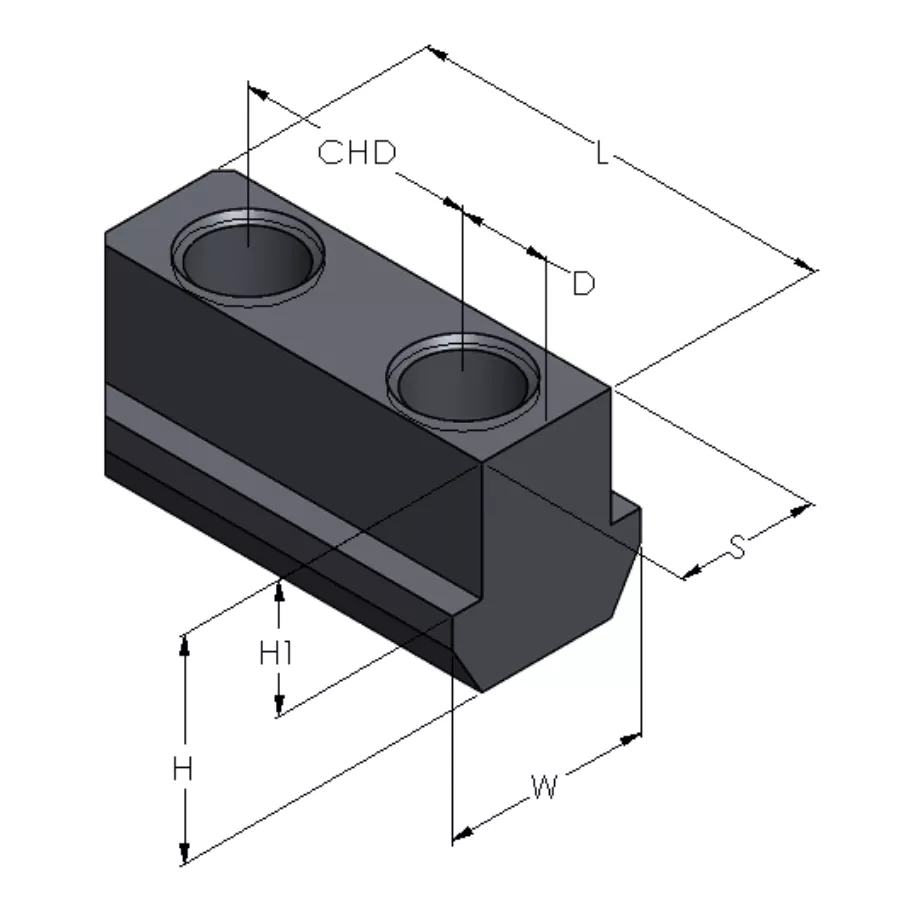

T-Nuts are selected according to the master jaw slot width and the centre hole distance (CHD) of the jaw mounting holes to ensure correct fitment with the chuck and jaw combination. Please contact Dimac for assistance selecting the correct T-Nuts or for options to suit other power chuck brands.
.png)
Filter product list
Kitagawa TN06PLUS
Kitagawa TN08PLUS
Kitagawa TN10PLUS
Kitagawa TN12PLUS
T-NutsFAQs
We’ve answered some of the most common questions.
If your question is not covered, please get in touch.
T-Nuts are selected based on the chuck model, master jaw slot dimensions and the centre hole distance (CHD) of the jaw mounting holes. Always confirm compatibility with your chuck and soft jaws before ordering.
T-Nuts are typically supplied in sets of three to suit standard 3-jaw power chucks. Please check the product listing to confirm the quantity supplied.
Not necessarily. T-Nut dimensions and mounting arrangements vary between chuck manufacturers and models. Always confirm compatibility before fitting T-Nuts from another chuck.
Standard T-Nuts are used to securely mount soft jaws to the chuck's master jaws. Kitagawa T-NutPLUS is a precision jaw-mounting system designed to improve positioning repeatability when soft jaws are removed and refitted, reducing the need to re-machine the soft jaws.
Kitagawa T-NutPLUS is designed for compatible Kitagawa BR-Series power chucks and must be used with approved Kitagawa or Dimac soft jaws.
