Cross Tenon Jaws
For over 45 years, Dimac has supplied Australian manufacturers with high-quality Cross Tenon Jaws for CNC lathes and turning centres.
Dimac cross tenon jaws are manufactured from 1045 carbon steel for excellent machinability, secure clamping performance and reliable concentricity. Aluminium and custom jaw options are also available to suit special applications.
Designed to suit leading manual chuck brands including Bison and Kitagawa, they deliver dependable performance, faster setup times and long service life in demanding machining environments.

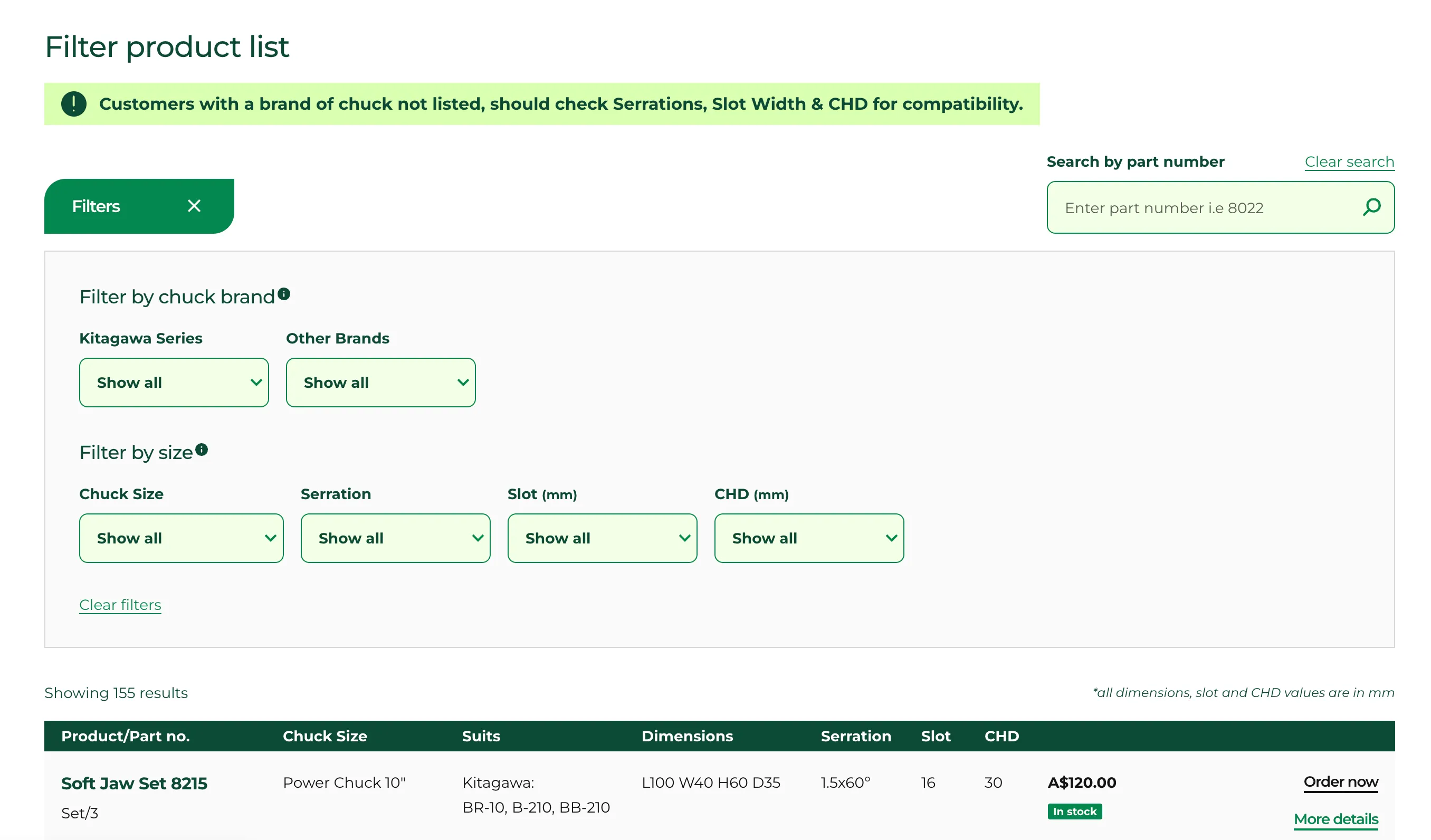

Filter product list
Cross Tenon Jaw Set 8041
Cross Tenon Jaw Set 8045-61
Cross Tenon Jaw Set 8280
Cross Tenon Jaw Set 8347
Cross Tenon Jaw Set 8498
Cross Tenon Jaw Set 8662
Cross Tenon Jaws
We’ve answered some of the most common questions.
If your question is not covered, please get in touch.
Soft jaws must match the chuck’s serration type, slot width and centre hole distance (CHD). If you are unsure which model is required, provide the chuck make and model so Dimac can confirm compatibility and recommend the most suitable soft jaws for your application.
1045 carbon steel is the standard choice for general machining. 6061 aluminium is better suited to softer or finished parts where marking must be avoided.
Yes. Dimac can modify standard cross tenon jaws to suit specific applications, including pointing, rough boring, reduced size, additional mounting bores, weight reduction and flame hardening.
If a standard product is not suitable, Dimac can assist with a custom cross tenon solution, simply get in touch with our team.
